Chocolate Production Line

Item # 9198 - CHOCOLATE PRODUCTION LINE

Line includes :

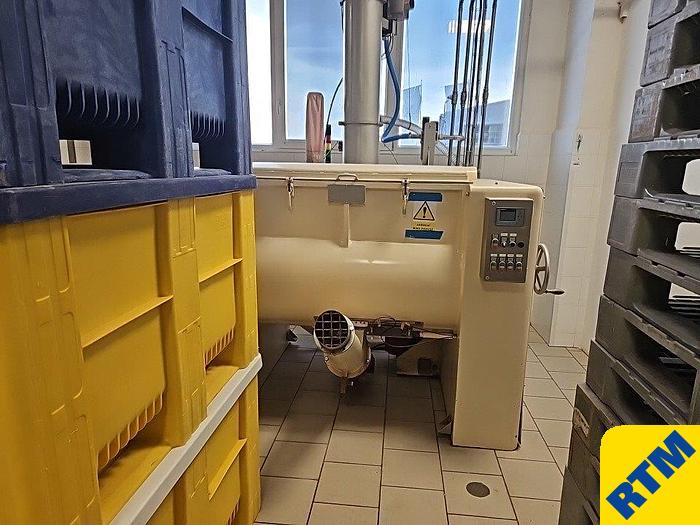

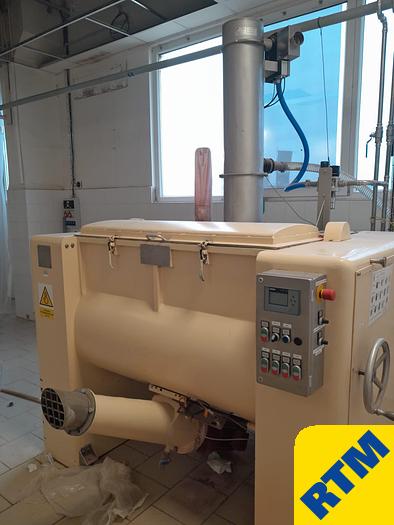

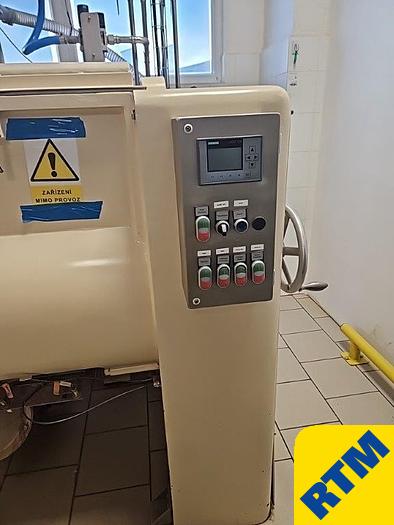

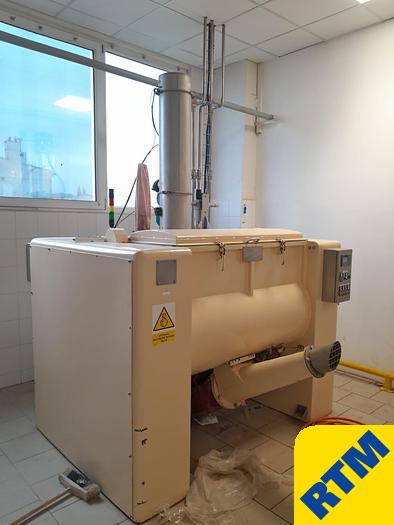

BEETZ MK-2/500 Chocolate Mixer, refurbished in 2023.

500Kgs capacity, this is an ejection mixer and kneader equipped with two horizontal mixing shafts. Mounted on the mixing shafts are segment paddles that enable a specially careful processing of the product. The trough is jacketed enabling both heating and cooling. The product is discharged through a bottom outlet. With New electric and New Dust filter. Connecting belt to the 3 roll refiner.

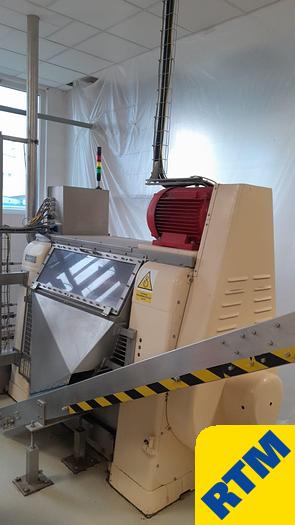

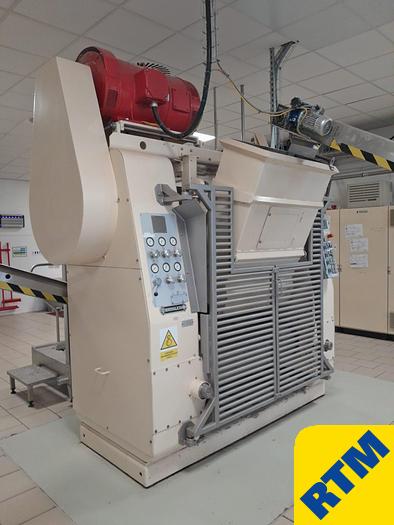

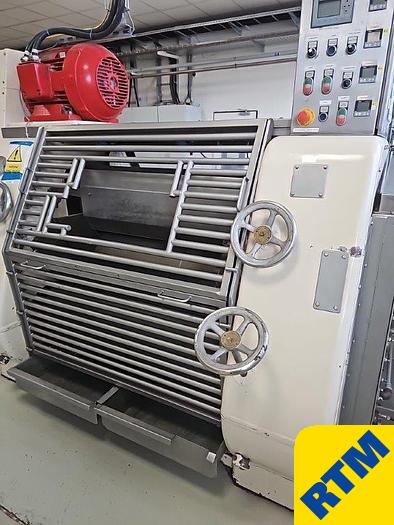

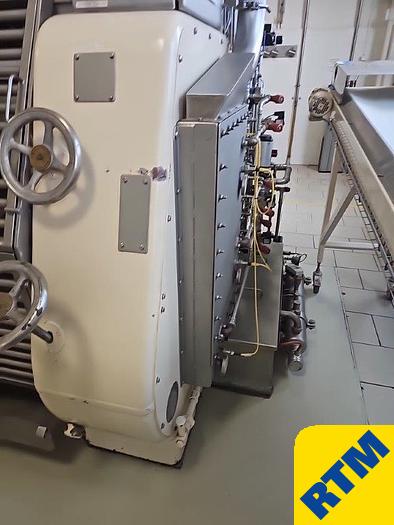

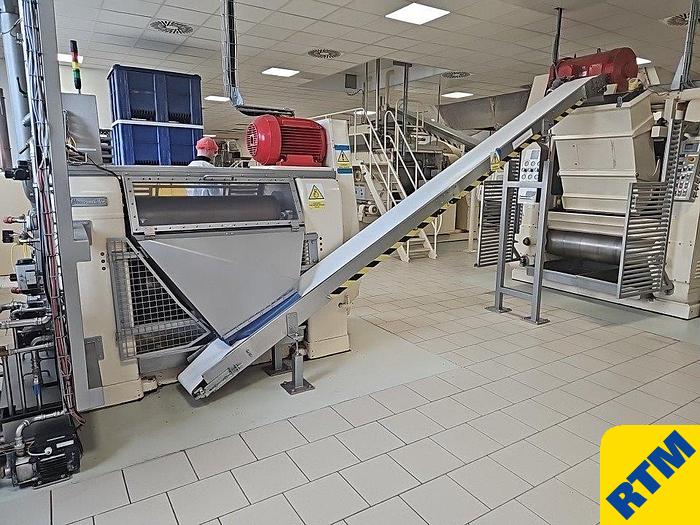

BAUERMEISTER DW51 3-Roll Refiner, refurbished in 2023,

The machine is equipped with three steel rolls to refine pasty, fatty masses. The gap between the rolls is adjusted by means of manual wheels on the front side of the machine. The drive speed is transferred to the first roll via V-belts. The mass is supplied through a mass hopper on the front side of the machine. On the back side the mass is removed from the third roll by means of a knife bar. Roll width: approx. 1000mms. Drive motor: approx. 22 kW. With New electric and water station.

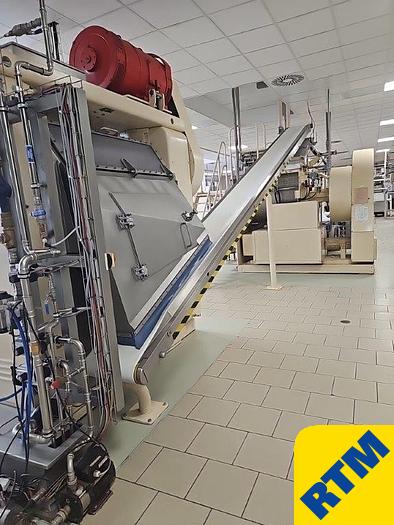

Connecting belt to the 5 roll refiner.

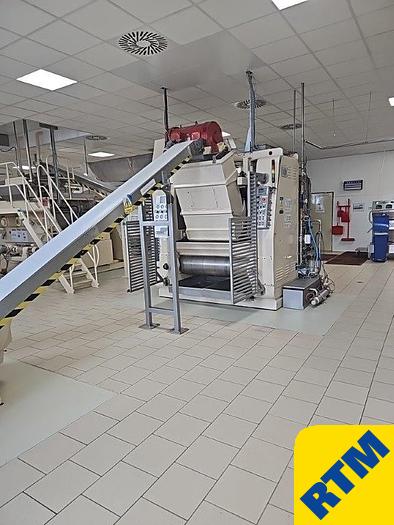

BUHLER SFG-1000 5-Roll Refiner, refurbished in 2023,

capacity of 200 to 600Kgs per hour, with New electric and water station.

Connecting belt to the Conching machine.

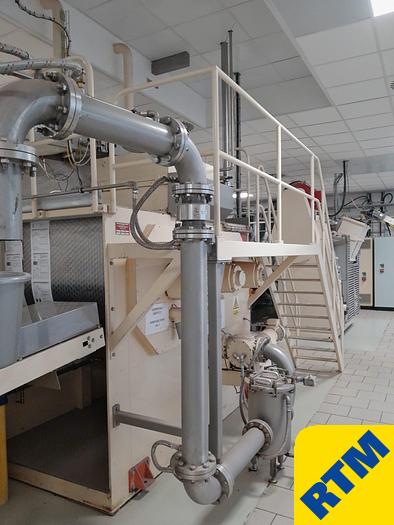

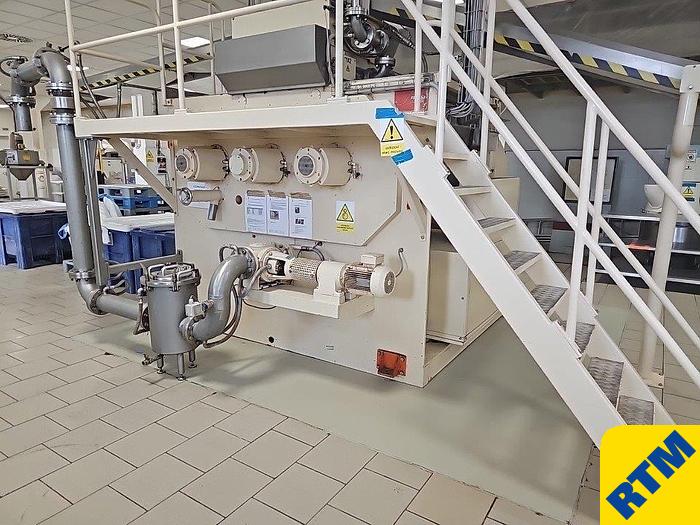

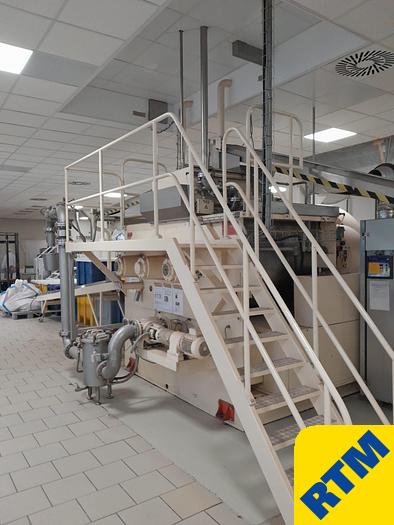

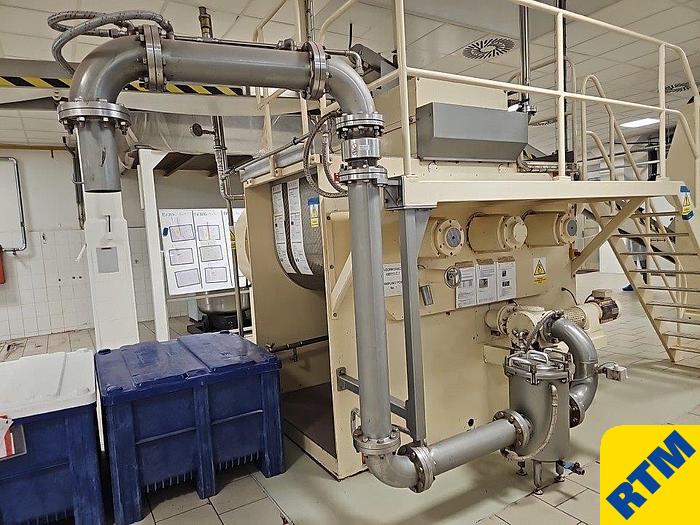

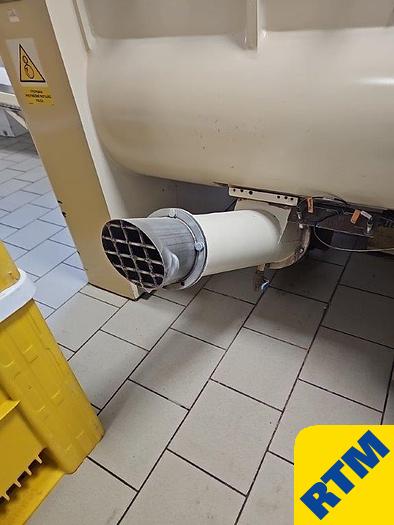

FRISSE DUC-1-R Chocolate Conche, Year 1992, refurbished in 2023,

1500Kgs capacity, with new electrics and new metal sieve/separator.

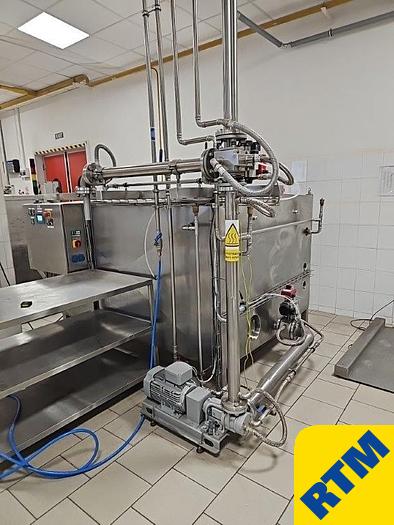

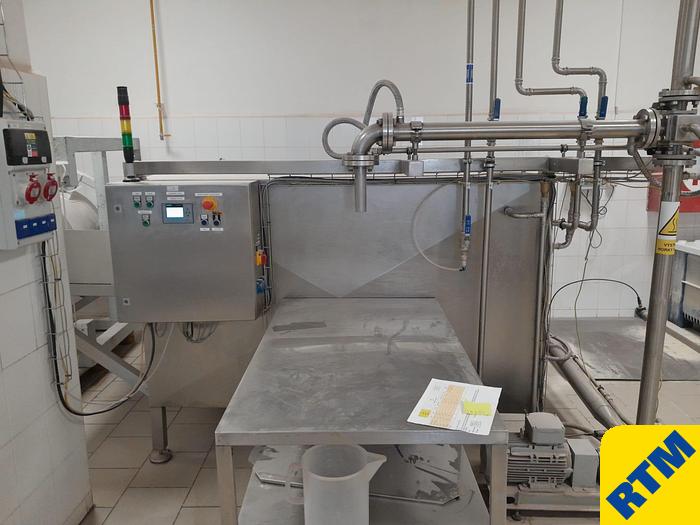

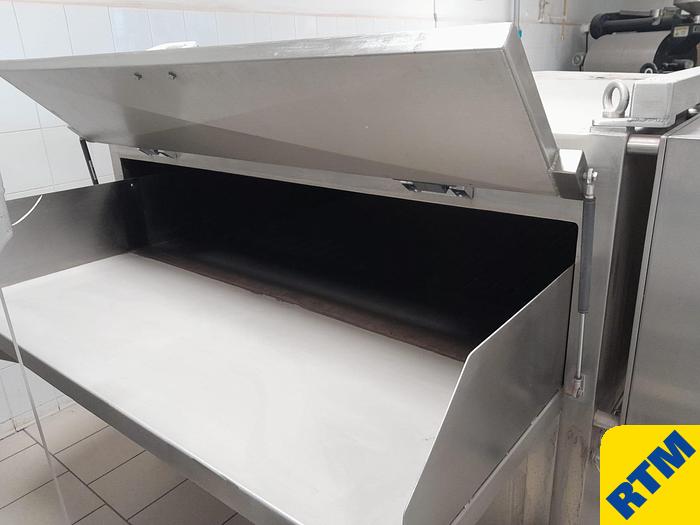

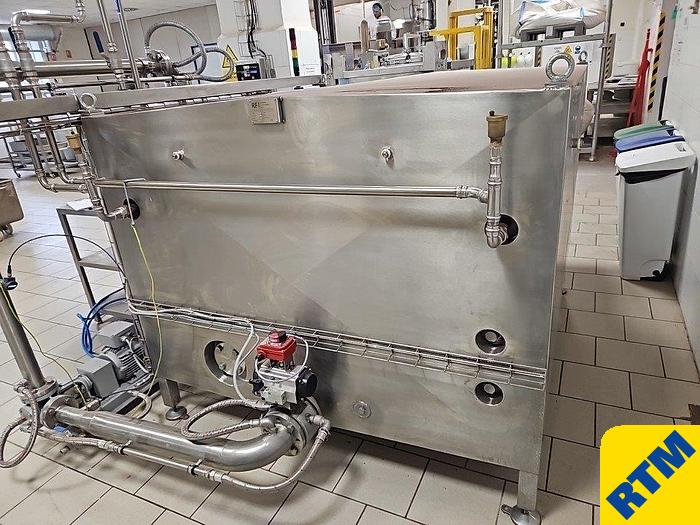

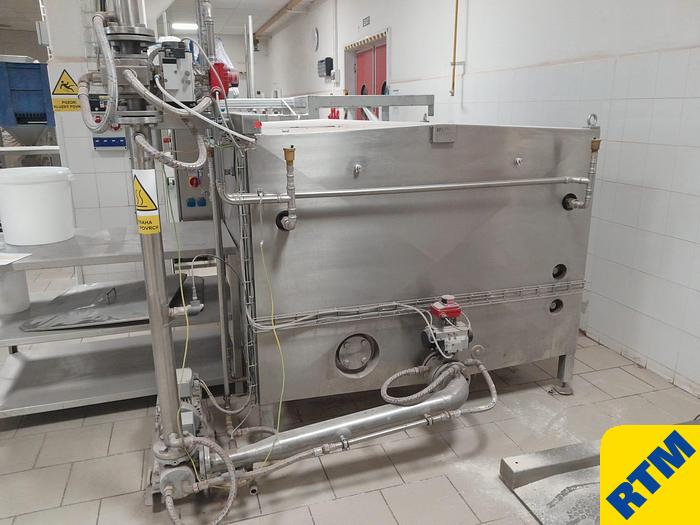

RFI MASCHINEN Fat Melter, Type BAS1000, Year 2022,

1000litres capacity

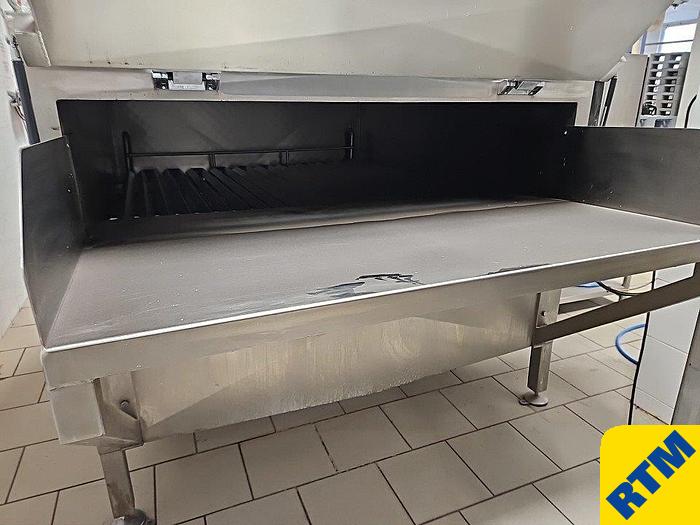

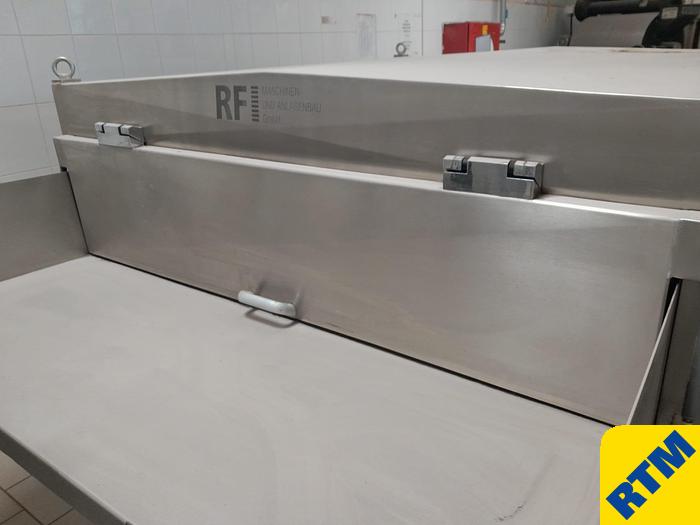

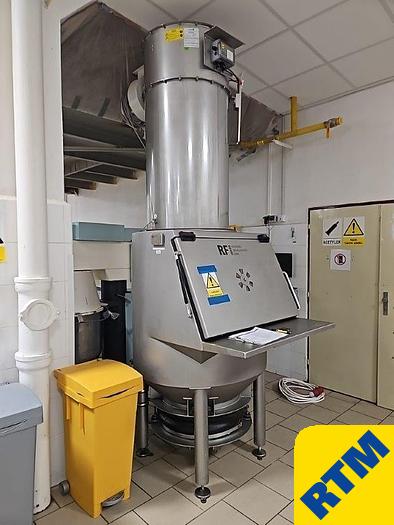

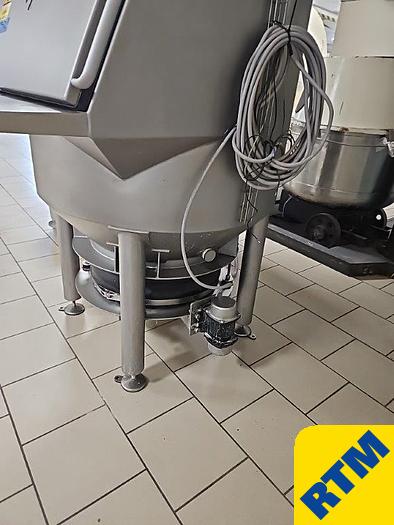

RFI MASCHINEN Suction Conveyor, Type SASF150, Year 2022,

230/400Volts, Designed for handling powders packed in bags, featuring an integrated filtration system for dust control. Designed for handling powders packed in bags, featuring an integrated filtration system for dust control.
